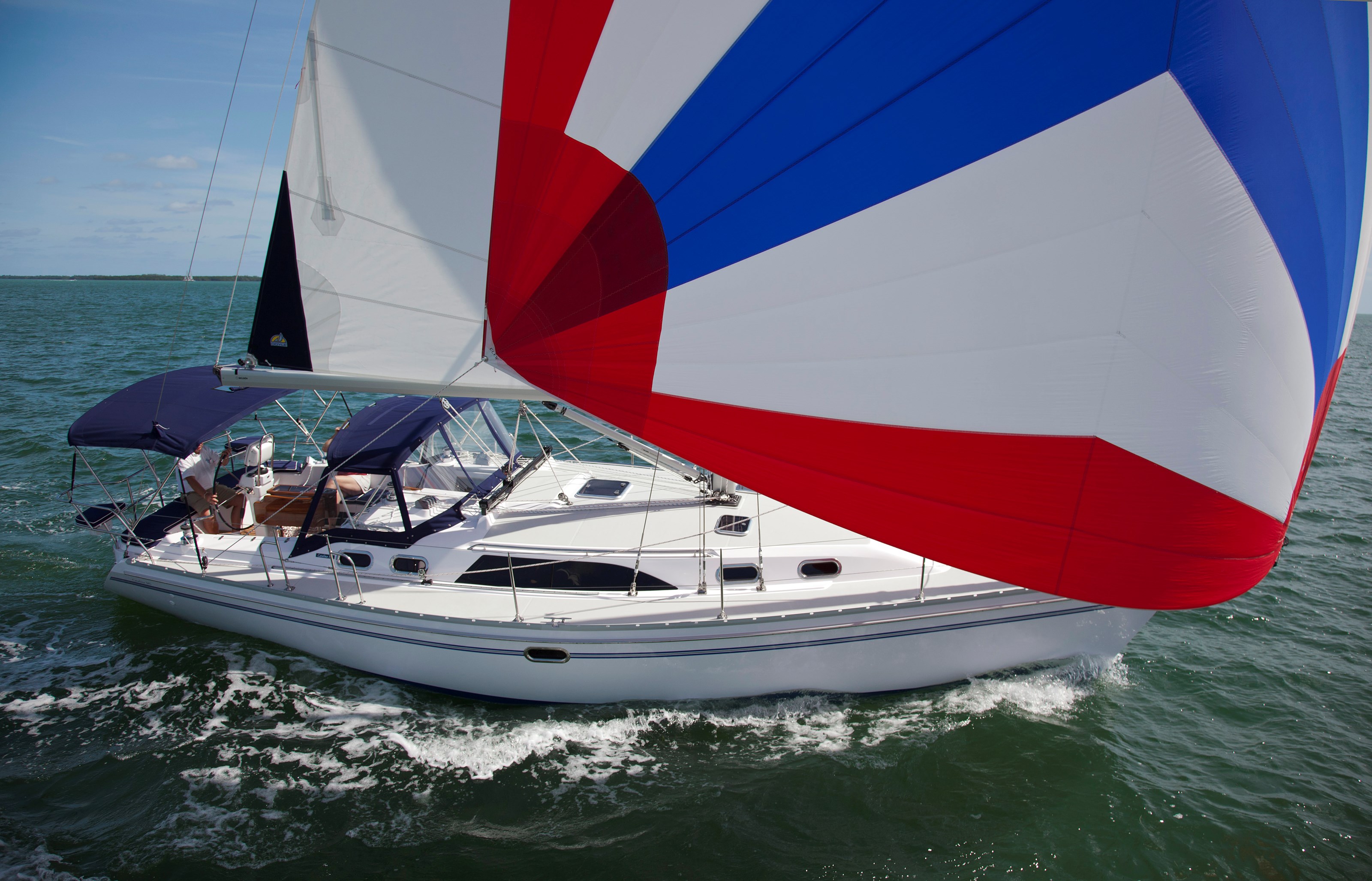

Lead keels, long travelers for precise sail control, and lengthy inboard genoa tracks so the sail plan is balanced in all wind conditions are just a few of the many design features that sets the new Catalina 385 apart from other yachts.
More unique features include a watertight StrikeZone™ collision bulkhead aft of the anchor locker. A new backstay system creates an impressive cockpit for the avid sailor, and Catalina’s unique SecureSocket™ chain plates mast support system affords superior load resolution.
The latest in the line of new Catalinas that evolved from successful design features and proportions of previous models, the 385’s moderate beam is carried well aft for a spacious cockpit; modest freeboard reduces windage and a beautiful hand-finished teak interior brings it all home with classic warmth and styling that has been a trademark of Catalina for 41 years.
</>
PRINCIPLE CHARACTERISTICS
Length Overall: 39′ 10″
Hull Length: 38′ 2″
Beam: 13′ 1″
Draft:
Shoal: 4′ 8″
Fin: 6′ 10″
Ballast
Shoal: 6,200 lbs.
Fin: 5,200 lbs.
Approx Basic Weight:
Fin: 15,500 lbs.
Wing: 16,500 lbs.
Mast Height Above Water: 54′
Headroom: 6′ 6″
Fuel Capacity: 40 gal
Water Capacity: 100 gal
Holding Tank Capacity: 31 gal
Water Heater: 6 gal
Engine: Yanmar 4JH 45 HP
Ballast Ratio: 33.5F/37.6W
CONSTRUCTION
- Hull of Hand-laid Fiberglass with a Full Structural Grid and Hull Liner bonded to the Hull. Vinylester resin barrier coat to resist Osomatic blistering.
- Deck of Hand-Laid Cored Fiberglass with a Full Fiberglass Headliner
- Molded-in Diamond Pattern Non-skid, White with Grey Two-Tone
- Lead Fin Keel with Stainless Steel Attaching Bolts
- Molded –In-Gel Coat Waterline, Midwatch Blue
- Midwatch Blue and Silver Stripes
- Five Year Gel Coat Blister Protection * ( 2 )
- Five Year Hull Structure Warranty * ( 3 )
- Collision Bulkhead at Bow with “ Strike Zone ”
SPARS AND RIGGING
- 135% Genoa, with U.V, Protection, White
- Complete Standing and Running Rigging
- Internal Low-Stretch Dacron Halyards
- PVC Wiring Conduit with Messenger in Mast
- Furling Mainsail with Vertical Battens
SAIL HANDLING AND EQUIPMENT
- Selden In-Mast Mainsail Furling
- ( 2 ) Two-Speed Self Tailing Primary Winches
- ( 1 ) Self-Tailing Jib Halyard Winch
- ( 1 ) Two-Speed Self Tailing Mainsheet/Halyard Winch
- ( 1 ) Winch Handle 10 ” Ball Bearing
- Mainsheet Traveler with Car and Adjuster System Led to Cockpit
- Headsail Furling Gear
- Boom Vang, Rigid Adjustable Type
- Inboard Genoa Tracks
- ( 2 ) Low-Lead Genoa Blocks
- Vertical Battens for Mainsail
PROPULSION, STEERING & CONTROLS
- Fully Instrumented Engine Panel mounted on Edson Pedestal with Stainless Steel Guard
- Single Lever Engine Control on Pedestal
- Steering Brake
- Yanmar 40hp Diesel Engine, Fresh Water Cooled with Panel and Tachometer
- Bronze Propeller, Three Blade
- Sea Water Filter System for Engine Cooling
- Emergency Tiller Access and Emergency Tiller
- Bilge Blower
- 5” Illuminated Compass
- 36” Wheel, Stainless Steel
- Hand Laminated Rudder with 316 Stainless Steel Core and Post
DECK HARDWARE
- Comfortable “T” Cockpit with Contoured Coamings
- Fiberglass Cockpit Table with Two Folding Leaves and Foot Brace
- Walk Through Stern with Removable Helm Seat
- Stern Boarding Ladder
- Double Lifelines with Gates Port and Starboard
- Mooring Cleats, Two Fore and Aft
- Spring Line Cleats Midship
- Mooring Line Chocks
- Large Double Anchor Roller on Foredeck
- Molded In Anchor Locker for Below Deck Chain and Rode Storage
- Stainless Steel Handrails on Cabin Top
- Stern Rail with Observation Seats, Port and Starboard
- Double Lifelines with Pelican Hooks
- L.E.D. Cockpit Light
- Bi-Fold Teak Cockpit Companionway Door
- Large Cockpit Locker with Gull Wing Hatch
- Molded In LP Gas Lockers Port and Starboard With ( 1 ) 10lb Tank
INTERIOR
- Varnish Finish On Interior Teak
- Cabin Window Shades
- Inner-Spring Mattresses in Fore and Aft Berths with Custom Fitted Sheets
- Veneer Bulkheads with Solid Teak Trim
- Solid Teak Trim Doors, Cedar lined Hanging Lockers
- Chart Table with Storage Compartment and Lap Top Computer Bin
- Teak and Holly Textured High Pressure Laminate Sole
- Dining Table folds for Storage
- Fabric Covered Interior Cushions
- ( 3 ) Fixed Ports in Hull
- ( 5 ) Ventilation Hatches with Screens
- ( 8 ) Opening Ports with Screens
GALLEY
- Refrigeration, D.C. Powered System with Freezer Compartment, Front Access
- Large Storage Cabinets in Galley
- Large Icebox with Shelves, Top Access
- Two Burner Stove with Oven, Stainless Steel, L.P.G. with Auto Ignition
- Stainless Steel Double Sinks, polished
- Single Lever Faucet with pull-out Sprayer
- Micro Wave Oven A/C Powered
PLUMBING SYSTEM
- Hot & Cold Pressure Water Distribution System
- Manual Bilge Pump
- Hot and Cold Shower on Stern
- Electric Bilge Pump with Float Switch
- Electric Macerating Marine Head with Holding Tank and Deck Outlet
- Valve for Overboard Discharge of Holding Tank
- Water Heater with Engine Heat Exchanger and Electric Heating Element
ELECTRICAL SYSTEM
- Marine Battery Charger
- Battery Condition Meter
- 12 Volt Lighting Throughout
- Custom 110 Volt AC/12 Volt DC Electric Panel
- Circuit Breakers for AC and DC Electrical Panel
- AC Duplex Receptacles Throughout
- AC Dockside Power with Outlets and Polarity Indicator and Circuit Protection
- DC Electrical System with Safety Switch and Panel with Breakers
- ( 1 ) 110V 30 amp Shore Power Cord
- Deck Light and Steaming Light on Mast
- Electric Anchor Windlass, with Power Up and Down Controls with Chain Gypsy
- Navigation Lights to International Rules
- Adjustable L.E.D Cabin Lights
- Galvanic Isolator
</>
